Motorcycle Troubleshooting Guide
Use this guide when a KIM motorcycle module does not recognize the RFID fob, does not enable ignition, or behaves intermittently. Stabilize the motorcycle on its stand in a ventilated work area, set the transmission to Neutral, and keep the run/stop switch in the correct position. Confirm the exact KIM model and motorcycle fitment before comparing connectors or wire colors.
Motorcycle electrical systems are especially sensitive to battery condition and ground quality. A battery may illuminate the dash but fall below the voltage needed when the ignition or starter is loaded. Aftermarket lighting, alarms, chargers, and prior wiring repairs can also change the expected circuit. Check battery voltage, main grounds, fuses, plug-and-play connectors, fob recognition, and the factory run/stop and safety interlocks before replacing the KIM module.
Start with these checks
- Confirm the motorcycle battery is charged and remains stable when the ignition is enabled.
- Inspect battery terminals, chassis grounds, inline fuses, and every KIM connector.
- Test all programmed fobs and replace a weak fob battery before reprogramming.
- Verify the run/stop switch, Neutral or clutch interlock, ignition output, and starter circuit.
- Secure the harness away from heat and movement, then retest the full start and shutdown sequence.
Common questions
Why does the motorcycle dash turn on but the starter not engage?
Check battery voltage under load, the run/stop switch, Neutral or clutch safety circuit, starter output, and factory starter relay.
Is every KIM module universal?
No. Several KIM modules are brand or model specific. Confirm the exact motorcycle year, make, model, and module before installation.
Interactive Troubleshooting Guide
Follow the troubleshooting steps for the selected system

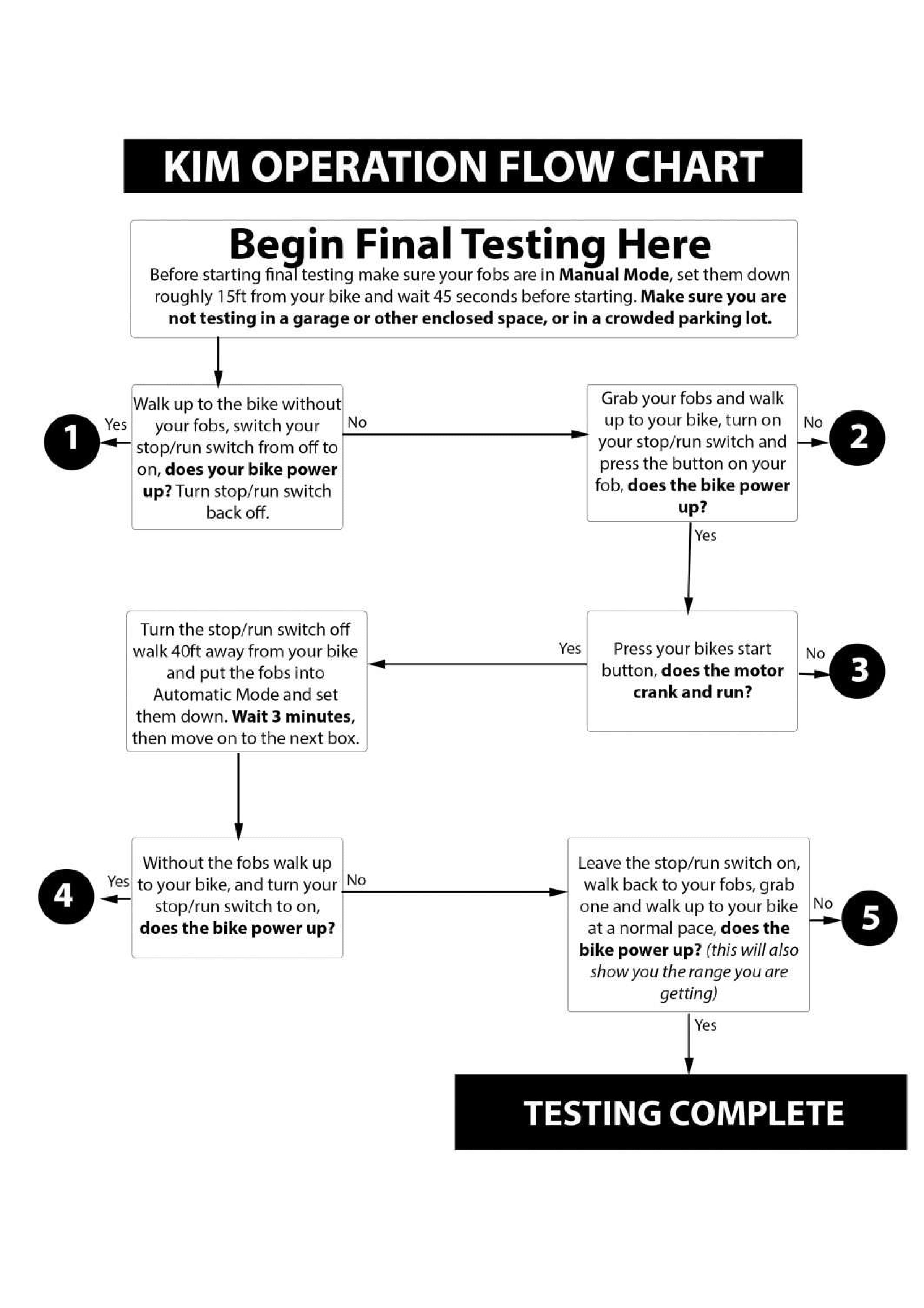

KIM Motorcycle Flow Chart
Step 1
